Ok the final stages..
This will be short and sweet, button in (in wrong places I noted later!!)
Guide button fixed to microswich and screwed to casing to give a contact when pressed. Seems to work ok..... for a blatant fudge..
Ground wire strung to all contacts ready for the indivdual wires..
Headpphone wired to 2.5mm jack and a 2.5mm input socket, and threaded through hole in side of case.. Jack will plug directly into bottom of Madcatz PCB..
All grounds complete and PCB inserted into case.
Headphone socket installed and attached..
USB lead to 360 threaded through back hole and plastic grommit, and glued to back of case..

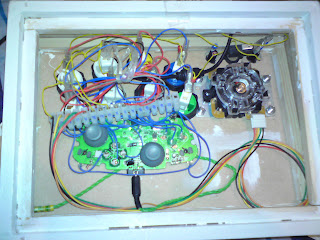

Rear of box open showing joystick harness cable attached and all buttons connected to the connector block and the PCB..
Thats all folks..!!
